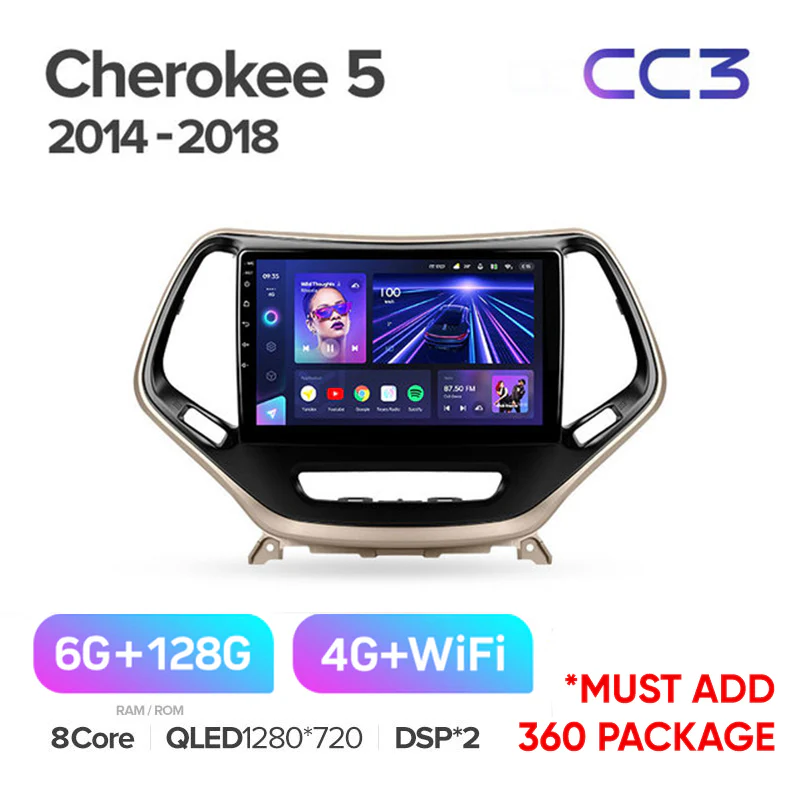

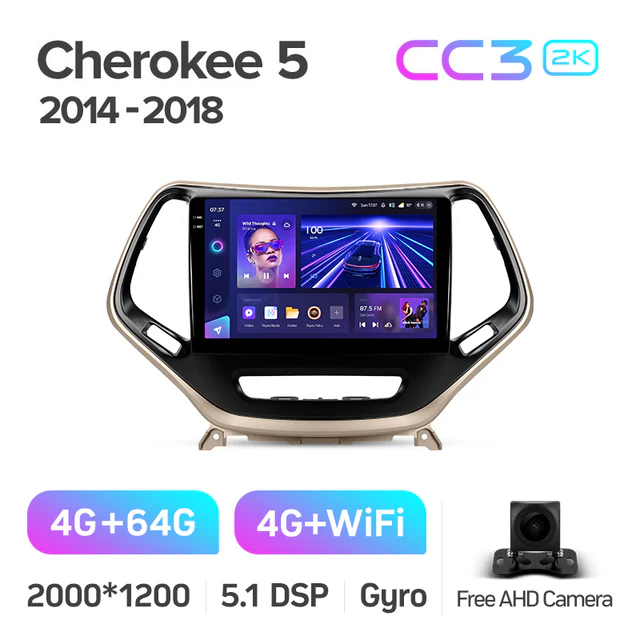

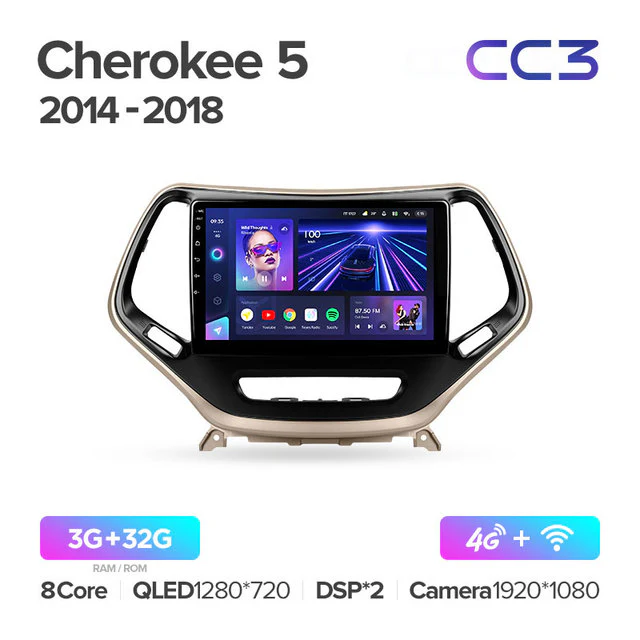

Jeep Cherokee 5 KL (2014-2018)

• Brand Name: TEyes
• Din: One Din
• Display Size: 10.2"
• Digital Media Format: Mp3,Mp4,WMA,JPEG
• Special Feature: Wifi Function,Support Steering Wheel Control,Support 3G Network,Support 4G Network
• Certification: CE,EAC
• Operating System: Android

Heated Steering Wheel canbus update - This will enable heated steering to work again

NOTE: Disable  heated steering wheel under comfort setting using the factory unit before replacing it.

NOTE: If you have single climate control (not dual) at the moment we cannot see the temp on the screen. See this solution here

NOTE: Factory brake service, rear radar and blind spot sensors are not compatible with canbus protocol

NOTE: Connect the A port harness to the provided harness RCA for CD audio

NOTE: please go to settings - device - sound - power conditioner and with the latest firmware update installed, set it to 30, set the DSP to rock

NOTE: You can retain your OEM GPS with a Fakra Type Z cable (click here)

NOTE: Center control USB ports are retained

NOTE: Will retain Parking sense, Lane assistance and heated seat function.

NOTE: XM Radio are not retained.

NOTE: If upon install you don't have sound and the canbus settings and installation is correct, update the canbus software - however you may lose heated steering function



You can choose between silver and gold frames. The images below are just for examples.

NOTE: If the sound is too loud, go to settings - device - sound - power conditioning and set it to 30

NOTE: The below head units are supported
